HS-VN Type Chain Block / chain hoist
HSVN Chain Block has 5 characteristics on the structural design and performance:
1) Safe and reliable for using, easy maintenance;
2)High mechanical efficiency, small hand chain tension;
3)Light in weight and easy to carry;
4)Beautiful appearance, small size;
5)Durable service.
HSVN Chain block applications:Mainly used in port, electric power, steel, shipbuilding, petrochemical, mining, railway, building, metallurgy, chemical industry, automobile manufacturing, plastics machinery, industrial control, highway, bulk transportation, pipe linings, slope protection, salvage, tunnel, shaft governance Marine engineering, airport construction, Bridges, aviation, spaceflight, venues and other important industries and infrastructure engineering machinery and equipment.
Technical parameters for HS-VN Chain Block / chain hoist
|
Model |
HS-VN |
HS-VN1 |
HS-VN1 |
HS-VN2 |
HS-VN3 |
HS-VN5 |
HS-VN10 |
HS-VN20 |
HS-VN30 |
HS-VN50 |
|
Capacity t |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
|
Standard lift(m) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Running load tests(KN) |
7.5 |
15 |
22.5 |
30 |
45 |
77 |
150 |
300 |
375 |
625 |
|
Min distance between hooks (mm） |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
890 |
980 |
1300 |
|
Hand pull force in full loading（N） |
231 |
309 |
320 |
360 |
340 |
414 |
414 |
828 |
450*2 |
450*2 |
|
No of fails of load chain |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
12 |
22 |
|
Load chain |
6 |
6 |
8 |
8 |
8 |
10 |
10 |
10 |
10 |
10 |
|

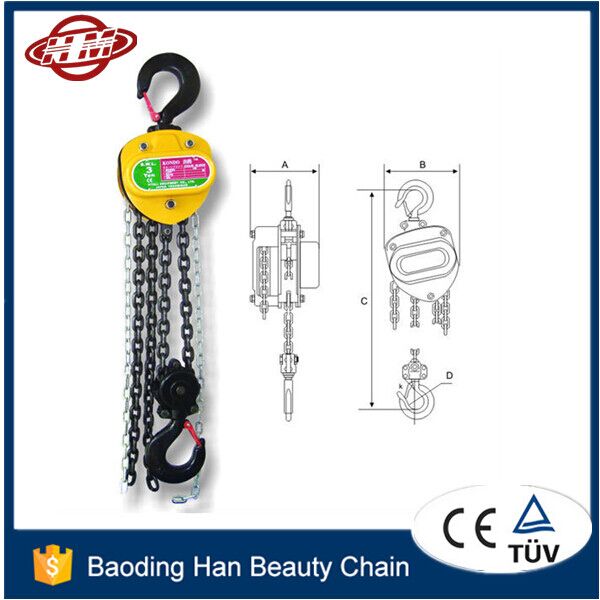

Dimension(mm) |
A |
131 |
140 |
161 |
161 |
161 |
186 |
207 |
215 |
|
|
B |
127 |
158 |
187 |
187 |
210 |
253 |
398 |
650 |
|
|
|
C |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
890 |
|
|
|
Hook opening |
30 |
34 |
38 |
41 |
48 |
52 |
64 |
85 |
|
|
|
Net. Weight(kg) |
11.25 |
11.5 |
17.4 |
22.2 |
26.2 |
37.7 |
72 |
160 |
|
|
|
Packing (L*W*H)(cm) |
28*21*17 |
30*24*18 |
34*29*20 |
33*25*19 |
38*30*20 |
45*35*24 |
62*50*28 |
70*46*75 |
|
|
