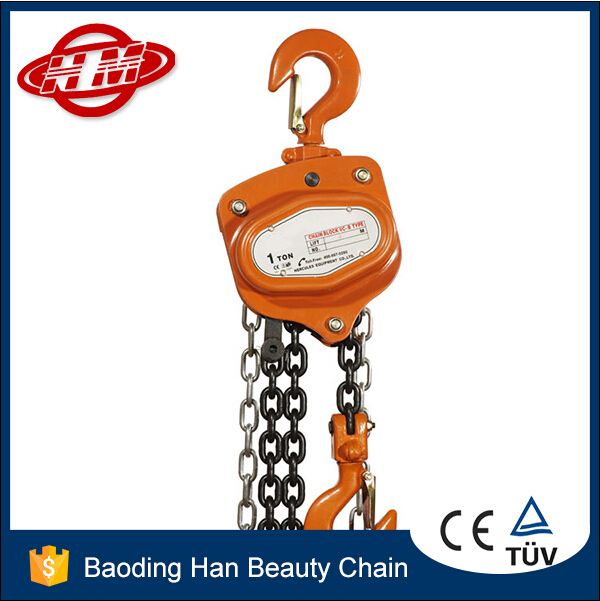

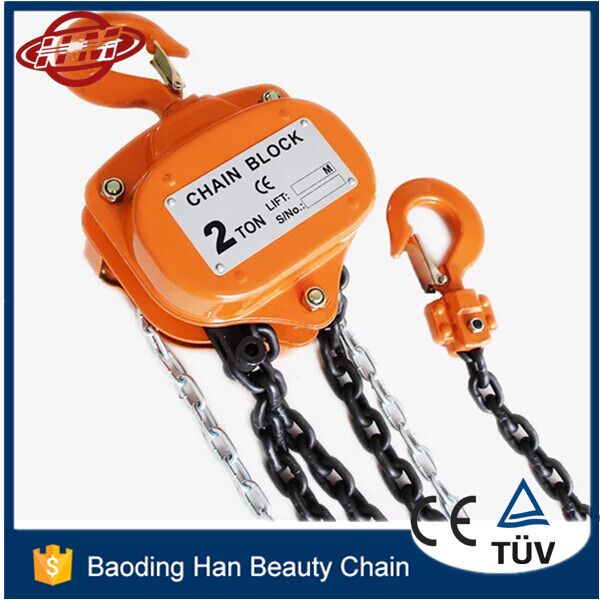

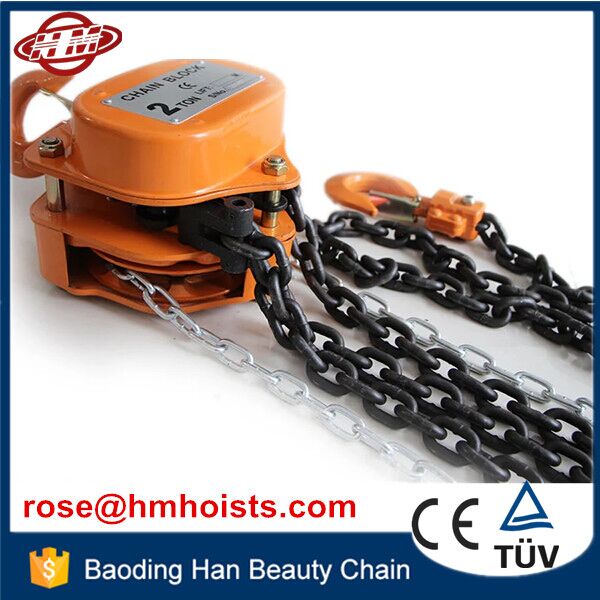

VC-B Type Chain Block/chain hoist

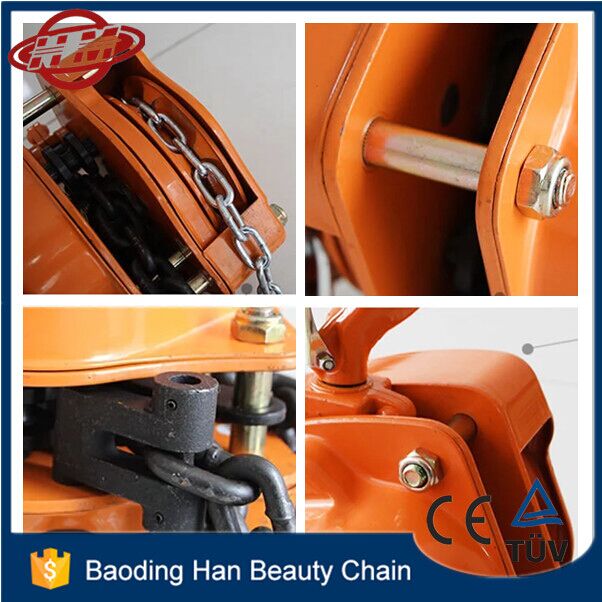

Features for VC-B Type Chain Block/chain hoist
1.double pawls supporting fail-safe brake mechanism for secure operations.
2.wet friction discs with longer life.
3.unique chain guide.
4.heat treated steel side plates,gears and shafts for enhanced strength.
5.quenched and tempered high tensile alloy steel chain and hooks.
6.forged upper and bottom hooks with forged steel safety latches.
7.powder coated finish.
Technical parameters for VC-B Type Chain Block/chain hoist
|
Model |
VC-B 0.5 |
VC-B 1 |
VC-B 1.5 |
VC-B 2 |
VC-B 3 |
VC-B 5 |
VC-B 10 |
VC-B 20 |
VC-B 30 |
VC-B 50 |
|
|
Capacity(t) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
|
|
Standard lift(m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Running test load(t) |
0.75 |
1.5 |
2.25 |
3 |
4.5 |
7.5 |
15 |
30 |
45 |
75 |
|
|
No.of falls of load chain |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
12 |
24 |
|
|
Load chain diameter(mm) |
5 |
6.3 |
7.1 |
8 |
7.1 |
9 |
9 |
9 |
9 |
9 |
|
|
Dimension(mm) |
A |
129 |
149.5 |
157.5 |
161.5 |
151.5 |
163 |
207 |
215 |
350 |
406 |
|
B |
136 |
145 |
164.5 |
187 |
164.5 |
211 |
398 |
650 |
680 |
962 |
|
|
C |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
890 |
1380 |
2578 |
|
|
Net weight(kg) |
8.4 |
12 |
16.2 |
20 |
24 |
41 |
79 |
193 |
220 |
1092 |
|
|
Packing (L*W*H)(cm) |
22*14*15 |
25*19*16 |
33*24*16 |
33*24*19 |
34.5*24*16 |
40*30*19 |
48*42*18.5 |
78*68*20 |
85*67*30 |
110*100*130 |
|
