SK chain block

SK type chain hoist is a widely used manual hoisting machinery which is easy to use and carry.it can be used in factory,mine,agriculture,electricity,construction site,wharf and dock.And it can also be used in installing of machinery,lifting,loading,unloading in the warehouse,especially suitable to be used in the open air and the place without power source. we manufacture the products in accordance with national standard,use the symmetry arrayed two stage gear driven structure.It is design reasonable,dainty material,advanced structure,beautiful appearance,small volume,light weight,big component strength,high toughness,safe and durability.The products has been selling well both at home and abroad.It can compete with well known brand all over the world. Features:

1.compact size,light weight,durable life.

2.high efficiency and small pulling effort at full load.

reliable,safe in operation and low maintenance.

very low headroom allows optimal use of available space.

bearing mechanism to increase mechanical efficiency.



Technical parameters for SK Type Chain Block

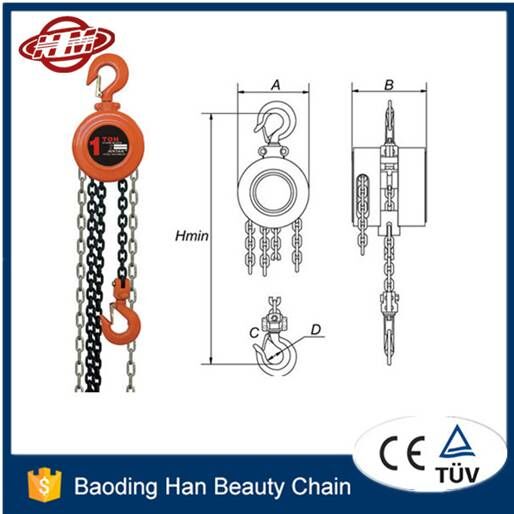

Capacity (TON)	Model	Standard Lifting Height(M)	Running test load (TON)	No.of falls of load chain	Load chain diameter(MM)	Dimensions  (MM)				Net. weight (KG)	G.W weight (KG)	Pull on chain to lift full load(KG)
						A	B	C	D
0.5	SK-0.5T	2.5	0.75	1	6	120	108	24	120	8	10	25
1	SK-1T	2.5	1.5	1	6	142	122	28	142	10	13	33
1.5	SK-1.5T	2.5	2.25	1	8	178	139	34	178	16	20	34
2	SK-2T	2.5	3	2	6	142	122	34	142	14	17	34
3	SK-3T	3	4.5	2	8	178	139	38	178	24	28	35
5	SK-5T	3	7.5	2	10	210	162	48	210	36	45	310
7.5	SK-7.5T	3	10	3	10	356	162	64	210	58	70	41
10	SK-10T	3	15	4	10	358	162	64	210	68	83	41
15	SK-15T	3	20	6	10	400	196	69	210	112	127	41×2
20	SK-20T	3	30	8	10	580	189	82	210	155	193	41×2
