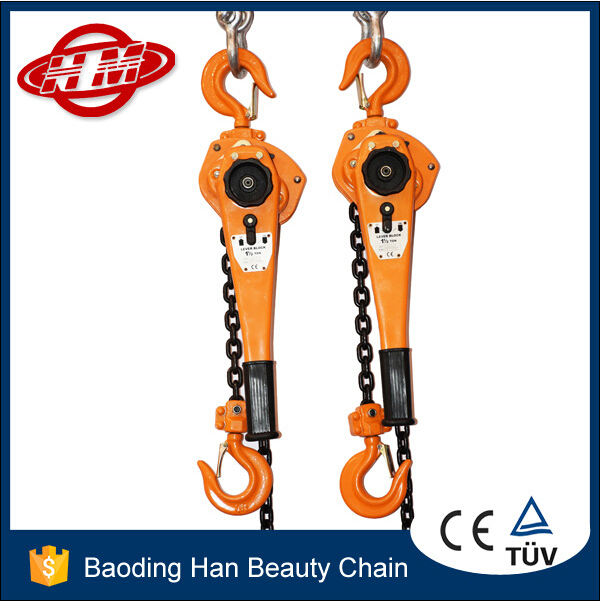

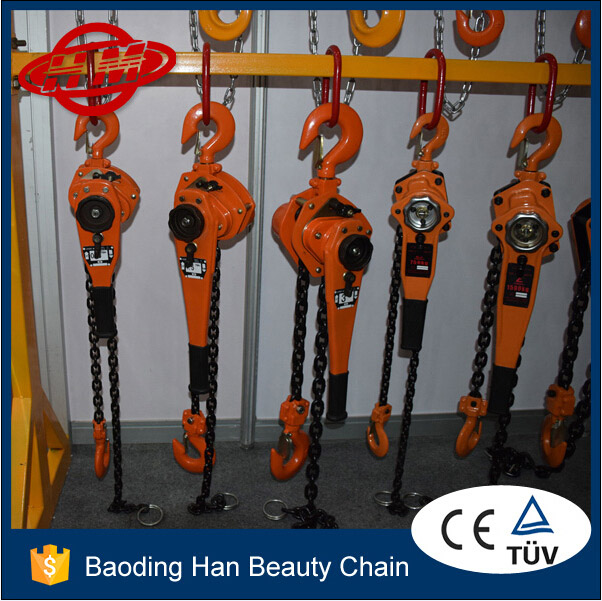

VL series lever block or lever hoist



VL series lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship buildings, construction sites, transports, post and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. Lever hoist is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles.

Features:

1.light weight and robustly constructed.

2.High tensile alloy chain and hooks

3.Minimum headroom required and very versatile in operation

4.360 degree rotating handle of case of use in confined space

5.Power coated finish,very durable against knock and abrasion

6.Automatic weston brake with unique twin pawls is well protected

7.Rubber grip for non-slip handing



Technical parameters for VL series lever hoist /lever block

Model		VL 0.5T	VL 0.75t	VL 1.5T	VL 3.0T	VL 6.0T	VL 9.0T
Capacity(t)		0.5T	0.75	1.5	3	6	9
Standard lift(m)		1.5	1.5	1.5	1.5	1.5	1.5
Running test load(t)		0.75	1.125	2.25	4.5	9	13.5
No.of falls of load chain		1	1	1	1	2	3
Load chain diameter(mm)		5	6.3	7.1	9	9	9
Dimension(mm)	A	102	155	170	198	198	198
	B	80	88	110	120	120	120
	C	95	135	162	211	254	319
Net weight(kg)		3.5	7	11	17	27.5	47
Packing(L*W*H)(cm)		37*14*17	37*14*17	52*14*18	55*16*21	55*16*21	55*16*21
