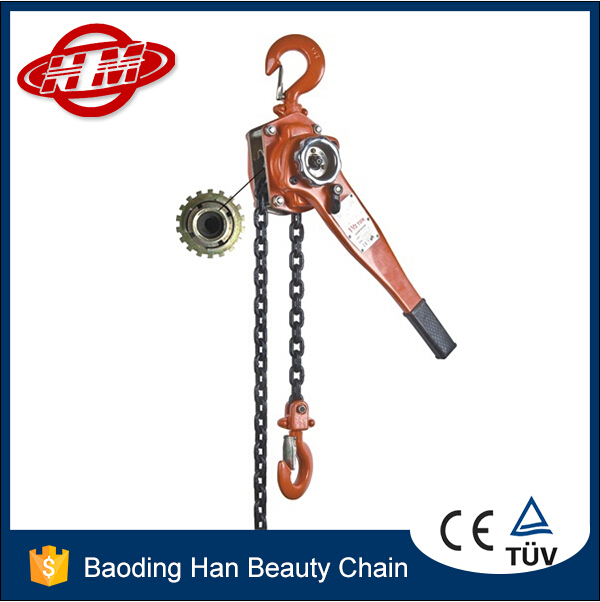

VA series lever hoist or lever block

Introduction:

The rated lifting capacity of the endless chain lever block is 750kg,1500kg,3000kg,6000kg,9000kg.it is widely used in factories,mines,construction areas,docks,and transport conditions.it is the ideal tool for equipment installation,object fixing,banding and towing,especially suitable for towing of random angle and working in scanty place,open air and place without power supply.

features:

1.The stroller mechanism.

2.Quenched and tempered hooks are safe even when accidentally overloaded.

3.Shock-resistant gear cover and brake cover locking out dust and rain.

4.Bolted rubber grip assures safe operation.

5.Extraordinary braking force,easy release,and the finest anti-rust treatment.

6.The brake mechanism is designed to avoid seizing.

7.The chain stopper protects the body.

8.A special surface-treated ,rust resistant load chain.

9.Super strong load chain for heavy duty use.



Technical parameters for VA series lever hoist



Model		VA 0.5T	VA 0.75t	VA 1T	VA 1.5T	VA 2T	VA 3.0T	VA 6.0T
Capacity(t)		0.5T	0.75	1	1.5	2	3	6
Standard lift(m)		1.5	1.5	1.5	1.5	1.5	1.5	1.5
Running test load(t)		0.75	1.125	1.5	2.25	3	4.5	9
No.of falls of load chain		1	1	1	1	1	1	2
Load chain diameter(mm)		5	6	6	8	8	10	10
Dimension(mm)	A	102	148	148	176	176	195	195
	B	80	87.5	87.5	102	102	109	109
	C	95	135	135	157	157	210	253
Net weight(kg)		3.5	7	7.5	11	12	19	32
Packing(L*W*H)(cm)		37*14*17	37*14*17	37*14*17	52*14*18	52*14*18	55*16*21	55*16*21
