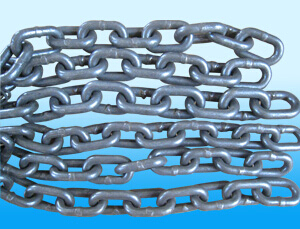

ASTM NACM90(G43) High-strength Chain



Grade 43 chain is a steel chain that possess greater tensile strength than Proof Coil Chain. Grade 43 Chain typically has a 50% higher working load limit than Proof Coil or Grade 30 Chain. G43 chains are also referred to as High Test Chain.

Grade 43 is used in similar applications as Grade 30, but where greater working load limits are experienced. High Test Chain is used in agriculture, construction and the trucking industry.

All of our Grade 43 Chain is 100 percent Proof Tested.

1)Material: high quality alloy steel 20Mn2

2)Size: 6mm,7mm,8mm,9mm,10mm,12mm,13mm,14mm,16mm,18mm,20mm,22mm,24mm

3)Surface treatment: Black or Electro-Galvanized or Hot Dipped Galvanized.,etc.

4)Manufacture standard: ASTM 80,NACM 84/90,NACM 96,

5)Quality Grade :G43

6)Safety factor : min 2 times for G43.

7)Product marking: G43 for identification purposes,or as required.

8)Packing: Steel drum&iron pallet, gunny bag,wooden case,plastic case,etc.

9)We also can make the non-standard chain according to the clients’s requirements.

NORMAL SIZE		D  MATERIAL DIAMETER		WORK LIMITED LOAD		MIN PROOF LOAD		MIN BREAKING LOAD		L INSIDE LENGTH		B INSIDE WIDTH
MM	INCH	MM	INCH	KG	LB	KN	LB	KN	LB	MM	INCH	MM	INCH
4.0	1/8	4	0.156	170	375	3.6	800	7.1	1600	23.9	0.94	6.4	0.25
5.5	3/16	5.5	0.217	365	800	7.2	1600	14.3	3200	24.8	0.98	7.7	0.3
7.0	1/4	7	0.276	580	1300	11.6	2600	23.1	5200	31.5	1.24	9.8	0.38
8.0	5/16	8	0.315	860	1900	15.1	3400	30.2	6800	32.8	1.29	11.2	0.44
10.0	3/8	10	0.394	1200	2650	23.6	5300	47.1	10600	35.0	1.38	14.0	0.55
13.0	1/2	13	0.512	2030	4500	39.8	8950	79.6	17900	45.5	1.79	18.2	0.72
16.0	5/8	16	0.63	3130	6900	60.3	13600	120.6	27200	56.0	2.20	20.0	0.79
20.0	3/4	20	0.787	4800	10600	94.3	21200	188.5	42400	70.0	2.76	25.0	0.98
22.0	7/8	22	0.866	5810	12800	114.1	25600	228.1	51200	77.0	3.03	27.5	1.08
25.0	1	26	1.02	8140	17900	159.1	35800	318.2	71600	90.9	3.58	31.7	1.25
