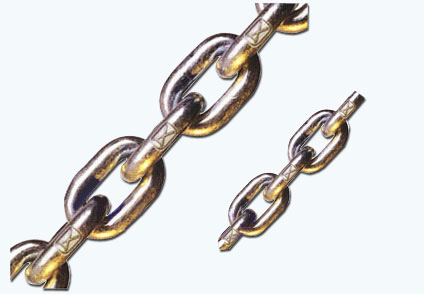

ASTM NACM96(G43) High-strength Chain

Grade 43 chain is a steel chain that possess greater tensile strength than Proof Coil Chain. Grade 43 Chain typically has a 50% higher working load limit than Proof Coil or Grade 30 Chain. G43 chains are also referred to as High Test Chain.

Grade 43 is used in similar applications as Grade 30, but where greater working load limits are experienced. High Test Chain is used in agriculture, construction and the trucking industry.

All of our Grade 43 Chain is 100 percent Proof Tested.

1)Material: high quality alloy steel 20Mn2

2)Size: 6mm,7mm,8mm,9mm,10mm,12mm,13mm,14mm,16mm,18mm,20mm,22mm,24mm

3)Surface treatment: Black or Electro-Galvanized or Hot Dipped Galvanized.,etc.

4)Manufacture standard: ASTM 80,NACM 84/90,NACM 96,

5)Quality Grade :G43

6)Safety factor : min 2 times for G43.

7)Product marking: G43 for identification purposes,or as required.

8)Packing: Steel drum&iron pallet, gunny bag,wooden case,plastic case,etc.

9)We also can make the non-standard chain according to the clients’s requirements.

D Nominal Size		Working Load Limit(max)		Proof Load (min)		Min.Breaking Load		Weight Per 100'		Inside Length  (max)		Inside Width (min)
INCH	MM	KG	LB	KN	LB	KN	LB	KG	LB	MM	INCH	MM	INCH
1/4	7.0	1,180	2,600	17.3	3,900	34.6	7,800	30.0	66.1	31.5	1.24	9.8	0.38
5/16	8.7	1,770	3,900	26.0	5,850	52.0	11,700	45.0	99.2	32.8	1.29	11.2	0.44
3/8	10.3	2,450	5,400	36.0	8,100	72.0	16,200	67.3	148	35.0	1.38	14.0	0.55
1/2	13.5	4,170	9,200	61.3	13,800	122.6	27,600	116	256	45.5	1.79	18.2	0.72
5/8	16	5,910	13,000	86.5	19,500	173.0	39,000	159	350.5	56.0	2.2	20	0.79
3/4	20	9,180	20,200	134.7	30,300	269.4	60,600	248.4	547.6	70.0	2.76	25	0.98
7/8	22	11,140	24,500	163.3	36,750	326.6	73,500	300	661.4	77.0	3.03	27.5	1.1
